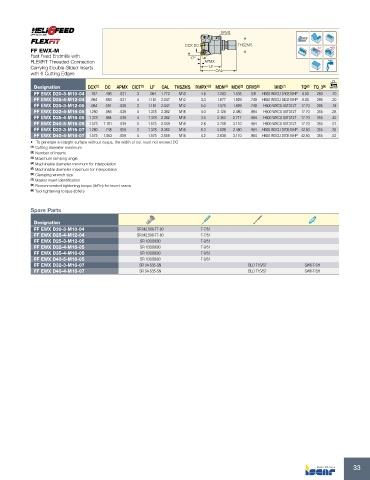

Page 33 - FAST_FEED_MILL_Brochure_INCH_2022

DRVS
DCX DC THSZMS

FF EWX-M Rd°
Fast Feed Endmills with 17°
FLEXFIT Threaded Connection APMX
Carrying Double-Sided Inserts LF
with 6 Cutting Edges OAL

Designation DCX (1) DC APMX CICT (2) LF OAL THSZMS RMPX° (3) MDN (4) MDX (5) DRVS (6) MIID (7) TQ (8) TQ_3 (9) Lbs
FF EWX D20-3-M10-04 .787 .496 .031 3 .984 1.772 M10 4.8 1.283 1.535 .591 H600 WXCU 040310HP 8.00 260 .10
FF EWX D25-4-M12-04 .984 .693 .031 4 1.181 2.047 M12 3.3 1.677 1.929 .748 H600 WXCU 040310HP 8.00 295 .20
FF EWX D25-3-M12-05 .984 .591 .039 3 1.181 2.047 M12 5.0 1.575 1.929 .748 H600 WXCU 05T312T 17.70 295 .19
FF EWX D32-4-M16-05 1.260 .866 .039 4 1.378 2.362 M16 4.0 2.126 2.480 .984 H600 WXCU 05T312T 17.70 355 .38
FF EWX D35-4-M16-05 1.378 .984 .039 4 1.378 2.362 M16 3.5 2.362 2.717 .984 H600 WXCU 05T312T 17.70 355 .42
FF EWX D40-5-M16-05 1.575 1.181 .039 5 1.575 2.559 M16 2.8 2.756 3.110 .984 H600 WXCU 05T312T 17.70 355 .57
FF EWX D32-3-M16-07 1.260 .748 .059 3 1.378 2.362 M16 6.3 2.008 2.480 .984 H600 WXCU 070515HP 42.50 355 .35
FF EWX D40-4-M16-07 1.575 1.063 .059 4 1.575 2.559 M16 4.2 2.638 3.110 .984 H600 WXCU 070515HP 42.50 355 .52
• To generate a straight surface without cusps, the width of cut must not exceed DC
(1) Cutting diameter maximum
(2) Number of inserts
(3) Maximum ramping angle
(4) Machinable diameter minimum for interpolation
(5) Machinable diameter maximum for interpolation
(6) Clamping wrench size
(7) Master insert identification
(8) Recommended tightening torque (lbf*in) for insert screw
(9) Tool tightening torque (lbfxin)

Spare Parts
Designation
FF EWX D20-3-M10-04 SR M2.5X6-T7-60 T-7/51
FF EWX D25-4-M12-04 SR M2.5X6-T7-60 T-7/51
FF EWX D25-3-M12-05 SR 10508600 T-9/51
FF EWX D32-4-M16-05 SR 10508600 T-9/51
FF EWX D35-4-M16-05 SR 10508600 T-9/51
FF EWX D40-5-M16-05 SR 10508600 T-9/51
FF EWX D32-3-M16-07 SR 34-535-SN BLD T15/S7 SW6-T-SH
FF EWX D40-4-M16-07 SR 34-535-SN BLD T15/S7 SW6-T-SH

33
