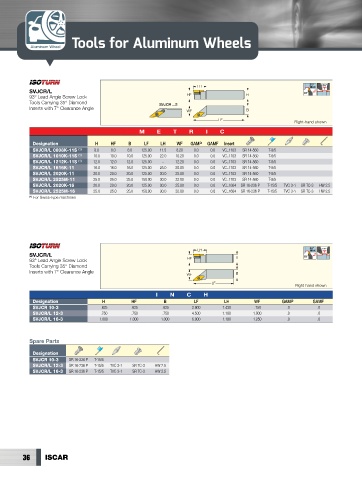

Tools for Aluminum Wheels

LH 50° 105°
MAX
SVJCR/L 93°
93° Lead Angle Screw Lock HF H
Tools Carrying 35° Diamond SVJCR ...S
Inserts with 7° Clearance Angle
WF B
LF Right-hand shown
M E T R I C

Designation H HF B LF LH WF GAMP GAMF Insert
SVJCR/L 0808K-11S (1) 8.0 8.0 8.0 125.00 11.5 8.20 0.0 0.0 VC..1103 SR 14-560 T-8/5
SVJCR/L 1010K-11S (1) 10.0 10.0 10.0 125.00 22.0 10.20 0.0 0.0 VC..1103 SR 14-560 T-8/5
SVJCR/L 1212K-11S (1) 12.0 12.0 12.0 125.00 - 12.20 0.0 0.0 VC..1103 SR 14-560 T-8/5
SVJCR/L 1616K-11 16.0 16.0 16.0 125.00 25.0 20.00 0.0 0.0 VC..1103 SR 14-560 T-8/5
SVJCR/L 2020K-11 20.0 20.0 20.0 125.00 30.0 25.00 0.0 0.0 VC..1103 SR 14-560 T-8/5
SVJCR/L 2525M-11 25.0 25.0 25.0 150.00 30.0 32.00 0.0 0.0 VC..1103 SR 14-560 T-8/5
SVJCR/L 2020K-16 20.0 20.0 20.0 125.00 30.0 25.00 0.0 0.0 VC..1604 SR 16-236 P T-15/5 TVC 3-1 SR TC-3 HW 2.5
SVJCR/L 2525M-16 25.0 25.0 25.0 150.00 30.0 32.00 0.0 0.0 VC..1604 SR 16-236 P T-15/5 TVC 3-1 SR TC-3 HW 2.5
(1) For Swiss-type machines

LH 50° 105°
MAX
SVJCR/L 93°
93° Lead Angle Screw Lock HF H
Tools Carrying 35° Diamond
Inserts with 7° Clearance Angle
WF B
LF
Right-hand shown
I N C H
Designation H HF B LF LH WF GAMP GAMF
SVJCR 10-3 .625 .625 .625 2.900 1.430 .750 .0 .0
SVJCR/L 12-3 .750 .750 .750 4.500 1.180 1.000 .0 .0
SVJCR/L 16-3 1.000 1.000 1.000 6.000 1.180 1.250 .0 .0

Spare Parts

Designation
SVJCR 10-3 SR 16-236 P T-15/5
SVJCR/L 12-3 SR 16-236 P T-15/5 TVC 3-1 SR TC-3 HW 2.5
SVJCR/L 16-3 SR 16-236 P T-15/5 TVC 3-1 SR TC-3 HW 2.5

36 ISCAR
